1.2: Creating a Die Roller Scene

In this part, we will be creating a Scene in Unity that allows us to roll different sided dice. Before starting, be sure you’ve completed [Chapter 1: Modeling a Die] and that all of your tests are passing.

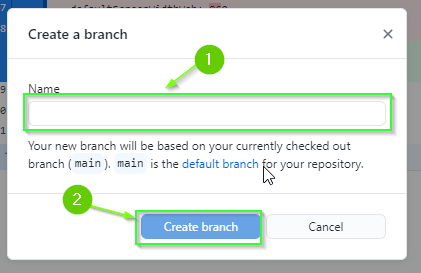

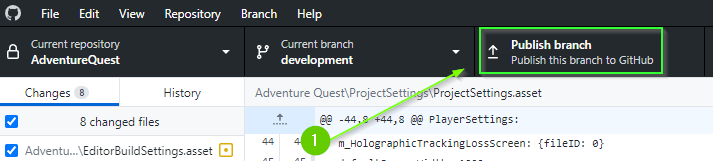

00. Create a Feature Branch

You’re about to start a new feature! Over the next 3 chapters, you will be implementing a Die Roller Scene. Before beginning, you should create a feature branch named {username}/die-roller-scene.

01. Create a Scene

A Scene in Unity is where you work with part of a game or application. In this section, we will create a Die Roller Scene that allows the user to click on buttons to roll dice with varying sides.

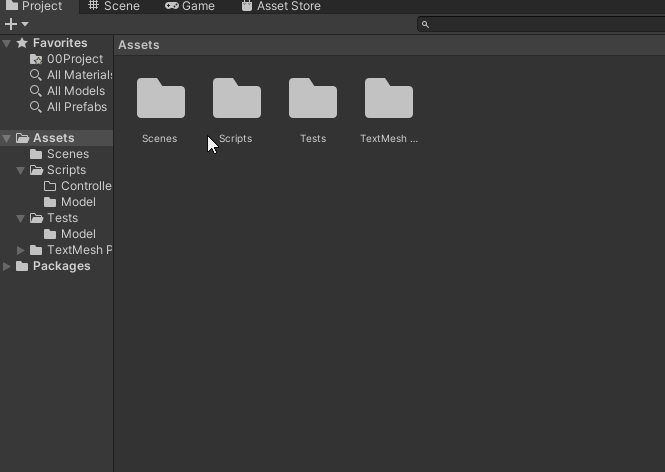

1. Open the Scenes folder.
2. Right click and select Create > Scene
3. Rename the Scene to be Die Roller
4. Double click to open the Die Roller scene.

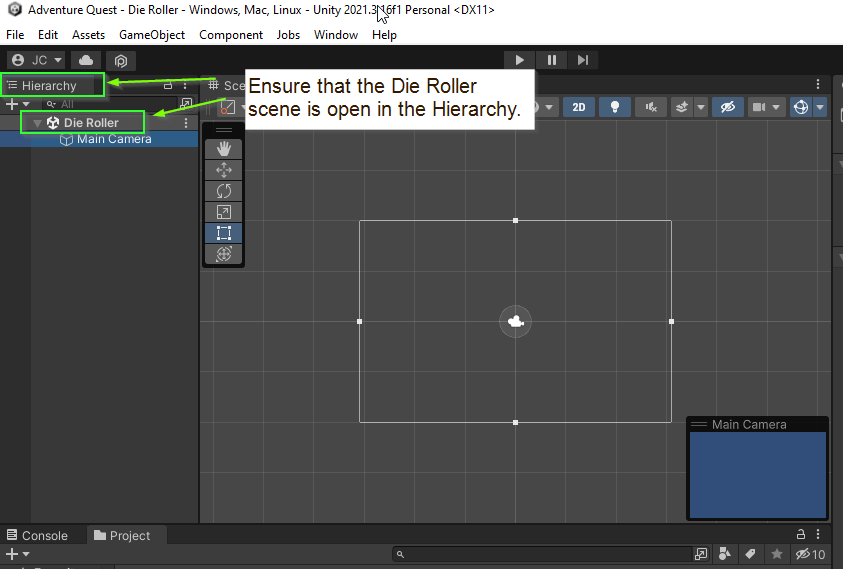

1. Verify that you have the Die Roller scene open. In the Hierarchy view, you should see Die Roller at the very top.

02. Setup Screen Dimensions

To make our lives a little easier, we will limit our game to use a standard monitor aspect size: 16:9. This is an aspect ratio and it means that for every 16 pixels wide, the screen is 9 pixels tall. This is a common screen resolution and includes HD (1920x1080) and 4K UHD (2840x2160).

Note: By default, Unity selects a Free Aspect which means it will try to accommodate ANY screen size. As awesome as this might sound, it turns out to be a bit of a challenge to make it work in practice.

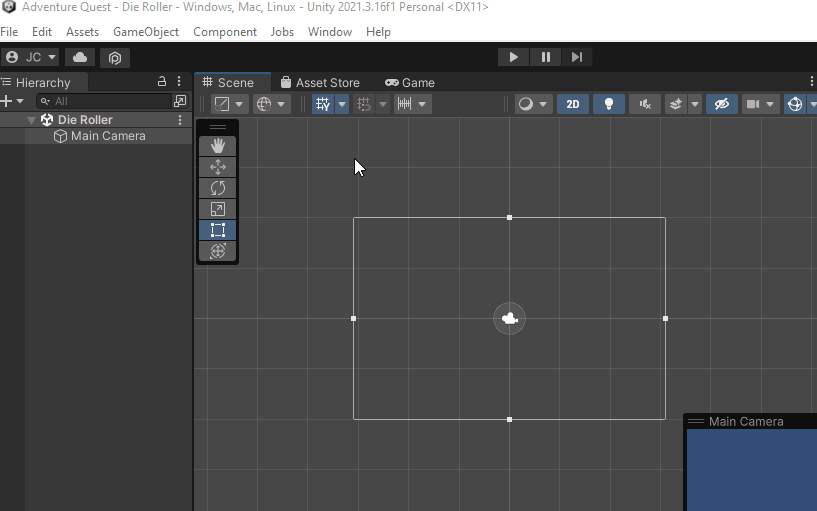

1. Click the Game Panel
2. Click the Aspect Drop Down (It probably says Free Aspect)
3. Select 16:9 Aspect

1. Finally, return back to the Scene panel.

03. Adding a Button to the Scene

Next, let’s add a Button to the scene.

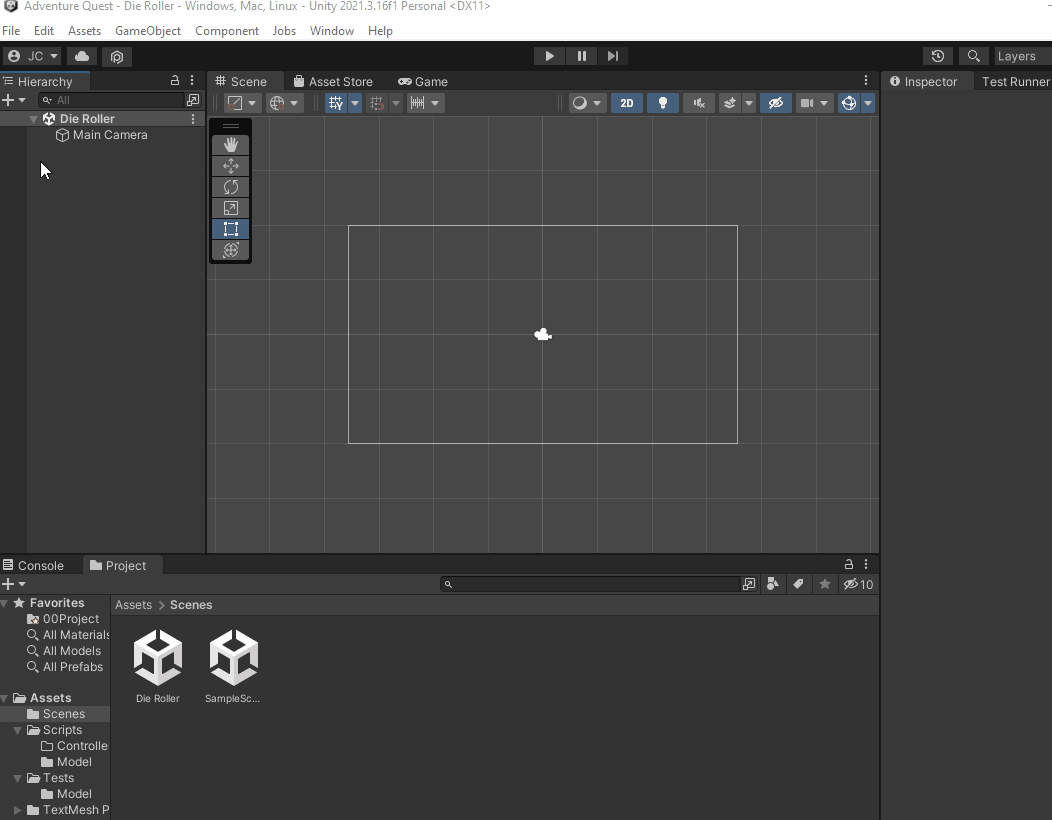

1. Right click in the hierarchy
2. Select UI > Button - TextMeshPro

After a moment, you will likely see a massive button appear in the Scene along with several items in the Hierarchy: A Canvas, a Button, a Text, and an EventSystem.

A Canvas is Unity’s main way for adding HUD / UI elements to the game screen. The EventSystem is the way Unity tracks user clicks / interactions with the Canvas. Finally, the Button is the actual button on the screen and the Text is the text that is displayed within the button.

04. Adjusting the Canvas

So… how do we make the button look reasonable?

There are a few things happening here. By default, a Canvas is set up to render over an entire screen rather than onto the scene directly. This is important in 3D games as well as 2D games that go outside of the bounds of what the player sees. What would it mean to have the canvas be in the game world?

Instead, the Canvas renders on top of what the player sees. If you were to click to the Game panel, you would see the Button how it would appear to the user. If you’re lucky, you will see the button somewhere on the screen. However, this will be dependent on the size of the Game panel itself. If you drag the screen around, you will see the button position on the screen move about.

1. Open the Game Panel
2. Resize the window to see the button move

What is happening?

The default behavior of the canvas is to maintain a constant pixel size. This means that, although the aspect is remaining constant, the size of the button and the text will always have the same size. If we select the Canvas in the Hierarcy, We can see this in the Inspector panel under the Canvas Scaler section.

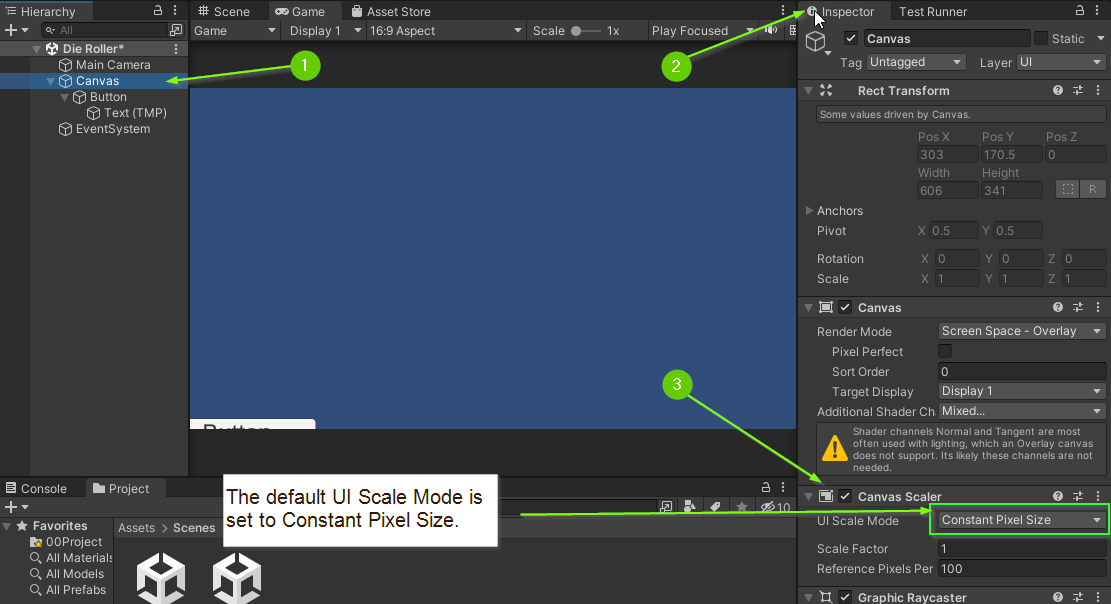

1. Click the Canvas in the Hierarchy
2. Open the Inspector panel.
3. Find Canvas Scaler in the Inspector panel.

How do we fix it?

For this scene, we would like the Canvas to scale to the size of the screen.

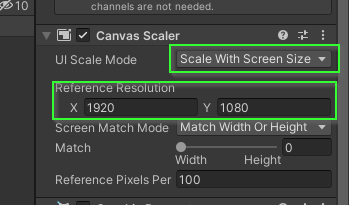

1. Set UI Scale Mode to be Scale With Screen Size
2. Set the resolution to be 1920 x 1080 (this is a 16:9 aspect)

As you do this, you should see the Button adjust its position on the screen. However, if you resize the Game panel, the button scales to match the new resolution!

05. Positioning the Button

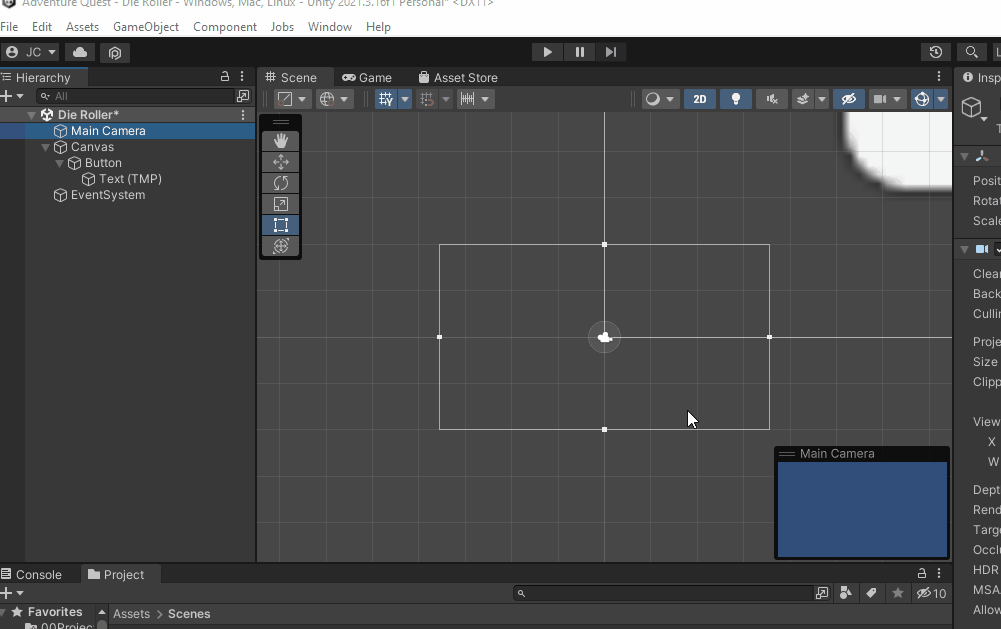

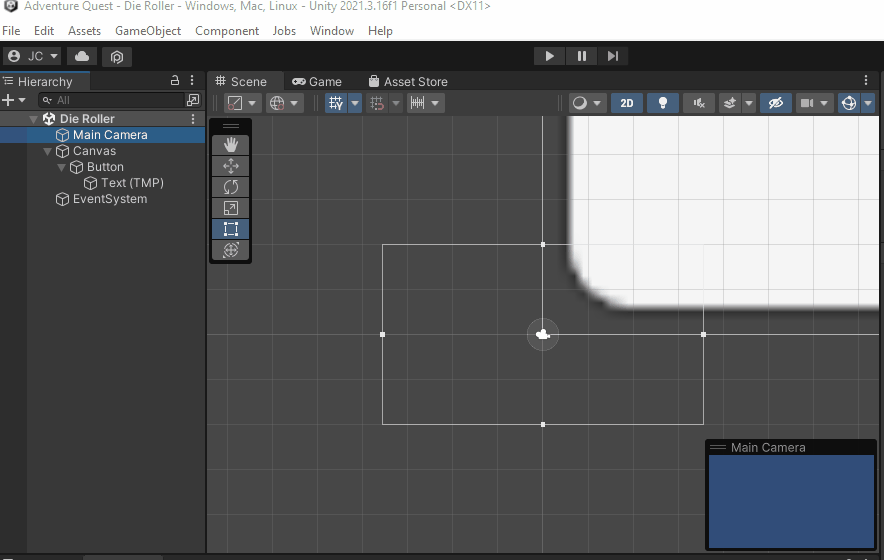

If you return to the Scene panel, you will still see that the Canvas is massive compared to the scene. If you double click the Canvas in the Hierarchy, the Scene view will zoom out and center the Canvas within the panel. In fact, double clicking on any component in the Hierarchy will center it in the Scene panel.

1. Double click on the Canvas in the Hierarchy
2. Double click the Main Camera in the Hierarchy

With our Canvas visible, let’s adjust the button to be at the bottom of the screen with a reasonable size.

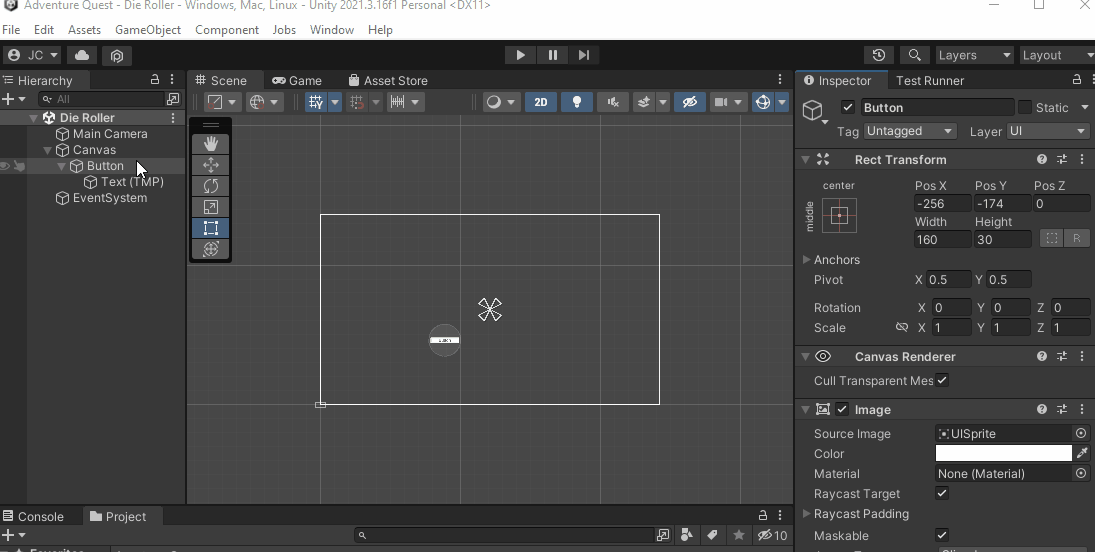

1. Select the Button in the Hierarchy
2. Find the Rect Transform component in the Inspector panel.
3. Click the Anchors icon
4. Select Bottom and Center

This updates how the Pos X and Pos Y properties are displayed. This makes them relative to the Bottom and Center position on the Canvas

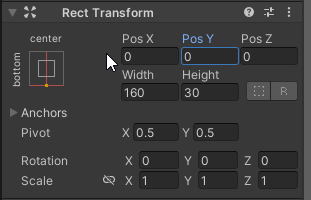

1. Next, update the Pos X and Pos Y to be 0

Because the anchors are set to the bottom and center of the screen, this centers the button at that point.

This isn’t quite what we want. You’ll notice that the bottom half of the button is now off the screen. This is because the Pivot of the Button is set to be the center point of the Button. We can adjust it to be the bottom of the button by changing the Pivot’s Y to 0.

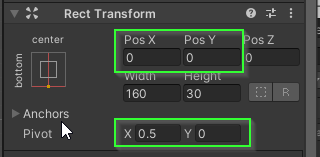

1. Set the Pivot to 0
2. Update Pos Y to be 0

If all went well, your button is now at the bottom center of the screen. If you’d like to give it a little padding, you can set Pos Y to be slightly positive.

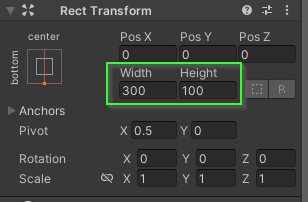

06. Sizing the Button

By default, Unity sets a button to be 160 pixels wide and 30 pixels tall. Because we have set our canvas to have a size of 1920x1080 the button appears quite small on the screen. Let’s update the size!

1. Set the buttons width to something more reasonable (I used 300)
2. Set the buttons height to something more reasonable (I used 100)

Because we have set the anchors and pivot to be the bottom center of the canvas, the button scales up and remains centered at the bottom of the screen.

However, the text did not change size. This is because the Text is its own component in the scene that happens to be nested within the Button.

1. Select the Text from the Hierarchy
2. Find the TextMeshPro component in the Inspector
   • You may have to scroll down to find it.
3. Change the Text from Button to Roll Die!
4. Change the Font Size to something more reasonable (I used 72).

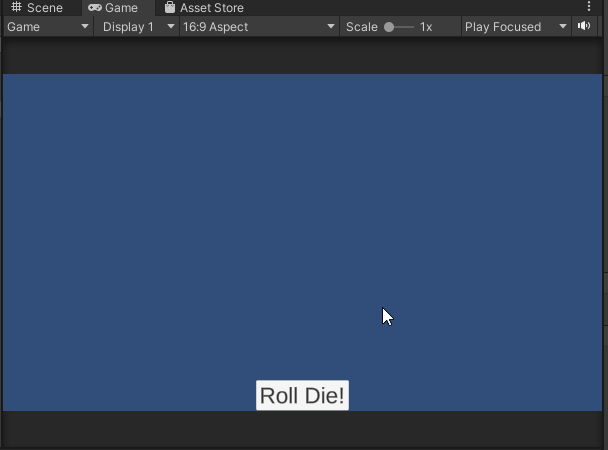

If all went well, the text on your button is now legible!

07. Creating a DieController

Next, we want to make the button do something! To do this, we will create a MonoBehaviour called DieController.

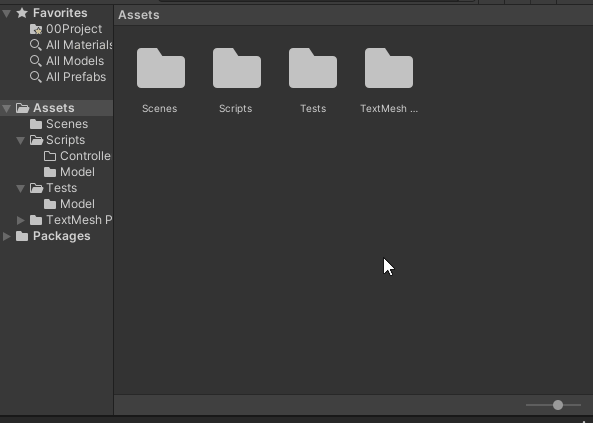

1. Open the Scripts/Controller folder
2. Right click
3. Select Create > C# Script
4. Name the script DieController
5. Double click to open the script

We will use a DieController to… well… control a Die. More specifically a DieController defines how a Die interacts with a Scene.

1. Update your DieController script:

using UnityEngine;

namespace AdventureQuest.Dice
{
    public class DieController : MonoBehaviour
    {

        private Die _die;

    }
}

• Because the DieController is tightly coupled with the Die class, we will add it to the AdventureQuest.Dice name space.
• To be able to attach a DieController to our Button, it must be a MonoBehaviour.
• Additionally, because a DieController controls a Die we add a Die field.

Notice: we have specified that the _die field is private. This means that the _die variable will only ever be accessed within this file preventing us (or our dev-team) from accidentally writing a bug that modifies / uses it in some way. Additionally, the naming convention for private fields in C# is to prefix with an underscore (_) and use camelCase.

1. Add a Start() method which initializes _die to be a 6 sided Die.

public class DieController : MonoBehaviour
{

    private Die _die;

    void Start()
    {
        _die = new Die(6);
    }
}

The Start() method is a “magic” method that Unity looks for on MonoBehaviours. If one exists, it will be called WHEN the MonoBehaviour enters the scene (when it “starts”). This acts similar to a constructor for MonoBehaviours and gives us an opportunity to initialize it. In this case, we initialize the variable to be a new Die with 6 sides.

1. Add a Roll method which calls _die.Roll() and reports the result using Debug.Log

public class DieController : MonoBehaviour
{
    // omitted for brevity

    public void Roll()
    {
        _die.Roll();
        Debug.Log($"Rolled a {_die.LastRolled}");
    }
}

The above method calls the Roll method of _die which causes the state of the Die to change. Then, using Debug.Log displays the result of the roll in Unity’s console. All that is left to do is connect it to our button!

08. Adding a DiceController to the Scene

Let’s add a DieController to the scene.

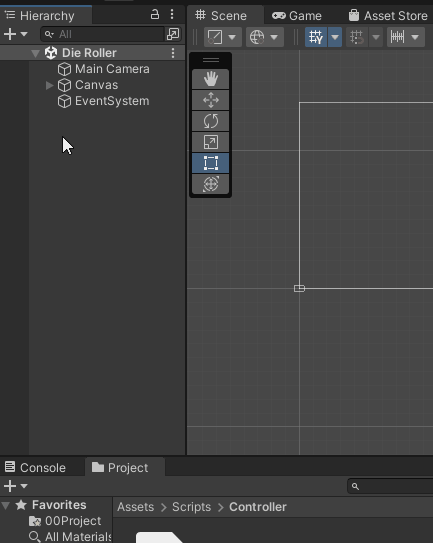

1. Right click in the Hierarchy panel
2. Select Create Empty
3. Rename the Game Object d6 Controller

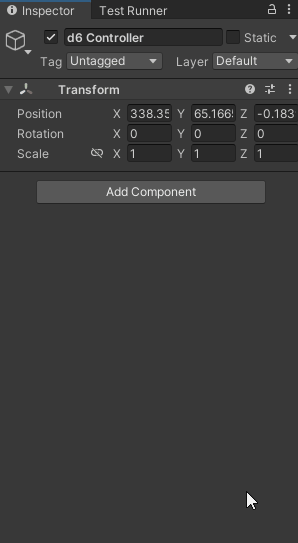

1. Select the d6 Controller in the Hierarchy
2. In the Inspector panel click Add Component
3. Search for DieController
4. Select DieController

If all went well, a Die Controller component is now visible in the inspector.

09. Rolling on Button Click

Next, we need to attach the Roll method to the Button’s OnClick event.

1. Select the Button in the Hierarchy
2. In the Inspector panel, find the Button component (you may need to scroll down)

At the bottom of the Button component, you will see a box labeled OnClick(). This is a UnityEvent that GameObjects can “listen” to and be notified when the button is clicked.

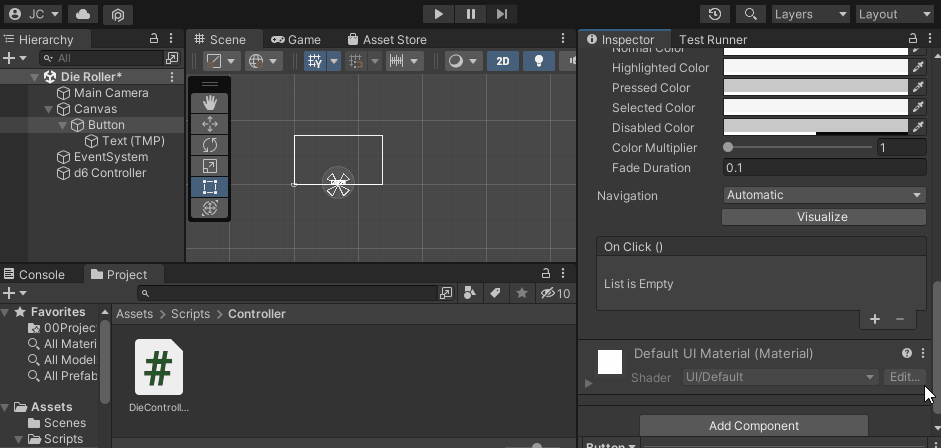

1. Click the + icon on the On Click () event to add a listener
2. Drag the d6 Controller from the Hierarcy into the box that says None (Object).

This registers the d6 Controller to listen for button clicks. All that is left to do is specify what it should do when the button is clicked.

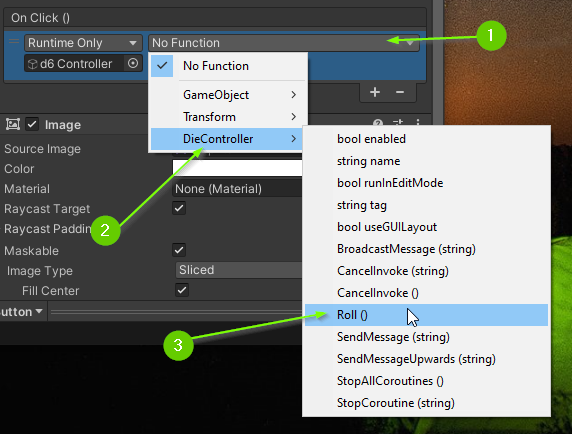

1. Click the drop down menu that is labeled No Function
2. Select DieController > Roll()

By doing this, we have specified that we would like the Roll() method to be invoked anytime the button is clicked.

Test it out

Whew! That was a lot of work!

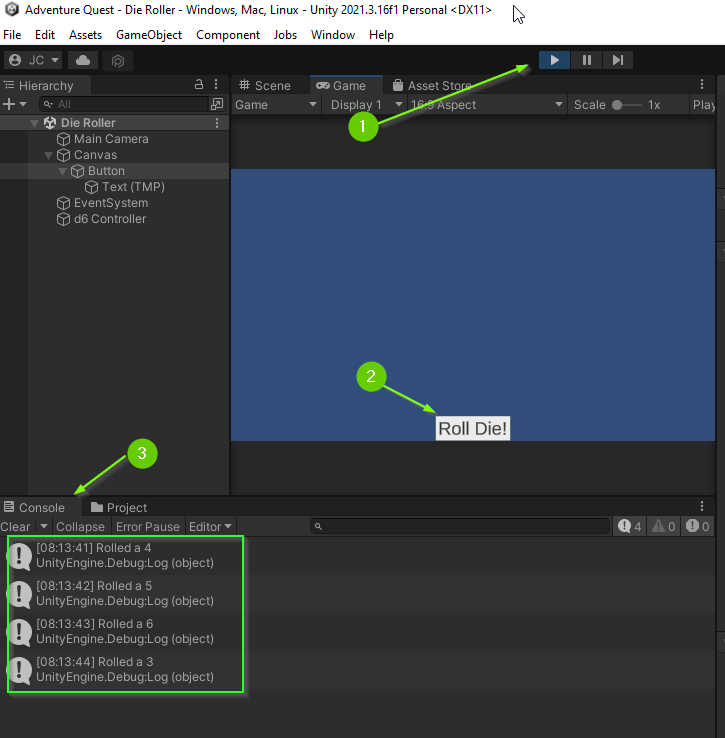

1. Click the Run button to launch the scene
2. Click the Roll Die! button
3. Open the Console panel

If all went well, you should see the output of the Debug.Log in your console.

10. Generalizing the DieController

Alright! We are now able to roll a 6 sided die. But we want to do be able to roll dice of all shapes and sizes!

To do this, we will add a int Sides property to our DieController that will specify how many sides the underlying die should be initialized with. Additionally, we will expose that property to the Inspector panel so we can set it in the editor.

1. Update the DieController class to have a Sides property that has a private set and initialized to 6. (Don’t forget to update your constructor)

public class DieController : MonoBehaviour
{

    public int Sides { get; private set; } = 6;
    private Die _die;

    void Start()
    {
        _die = new Die(Sides); // <-- This line changed!
    }
    public void Roll() { // omitted for brevity }
}

Because Sides should never change, we use private set to ensure that no one changes it later. Unfortunately, this means that the Inspector cannot see it. However, there is a work around! Unity provides a [field: SerializeField] attribute which allows us to modify a field in the Inspector without exposing it as public to the rest of the program.

1. Add the [field: SerializeField] attribute to the Sides property.

public class DieController : MonoBehaviour
{

    [field: SerializeField]
    public int Sides { get; private set; } = 6;

    // omitted for brevity
}

Now, if we view the DieController in the inspector, we can adjust the number of sides the Die will initialize with.

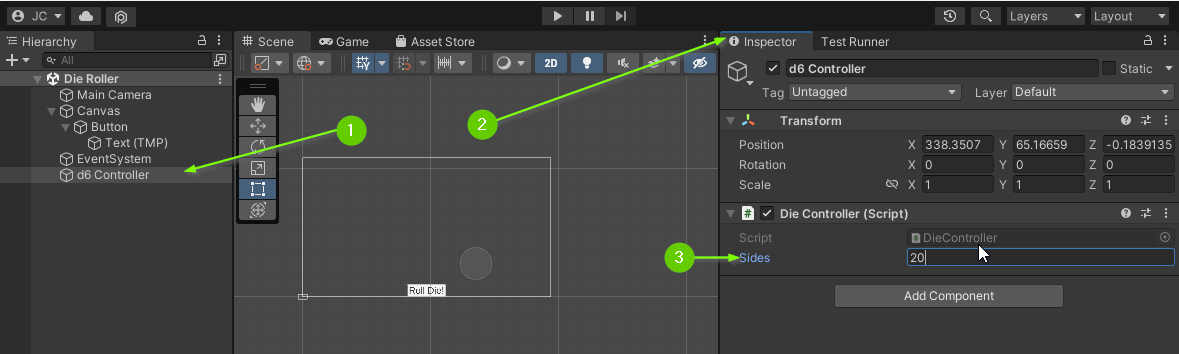

1. Select the d6 Controller in the Hierarchy panel
2. In the Inspector find the Die Controller component
3. Update the Sides field to be 20

Test it Out

1. Click the Run button to launch the scene
2. Click the Roll Die! button
3. Open the Console panel

If all went well, you should now see a new set of numbers being rolled!

Note: You can set the Sides property to be invalid in the editor. However, because we added in an ArgumentException during construction, the console will report an error immediately when the game is launched. By failing fast, we are more likely to be able to identify this bug quickly

Good Time to Commit

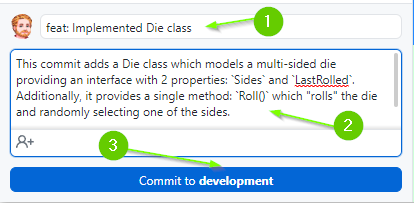

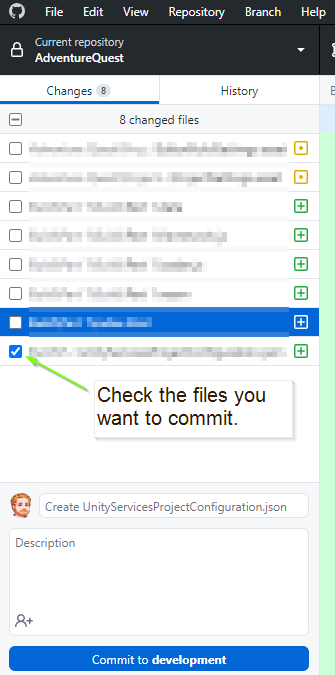

Now would be a good time to make a git commit. You just finished a feature. More specifically, you just implemented a simple DieController. Before committing, be sure you save your Die Roller scene (Unity doesn’t auto save for you).

This commit adds a Die class which models a multi-sided die providing an
interface with 2 properties: `Sides` and `LastRolled`. Additionally, it provides
a single method: `Roll()` which "rolls" the die and randomly selecting one of
the sides.

Additionally, added unit tests to test the Die class specification.

Challenge: Create a Set of Dice

Using everything you’ve done so far, can you create a set of Table Top Role Playing Game Dice? The set should include a d4, d6, d8, d10, d12, and d20.

For organization purposes, you should create a parent GameObject for all of your dice buttons as well as all of your dice controllers.

Read the Manual: Research the Horizontal Layout Group. Can you utilize it to position your buttons evenly along the bottom of the screen?

When you’re finished, your Hierarchy should match this one:

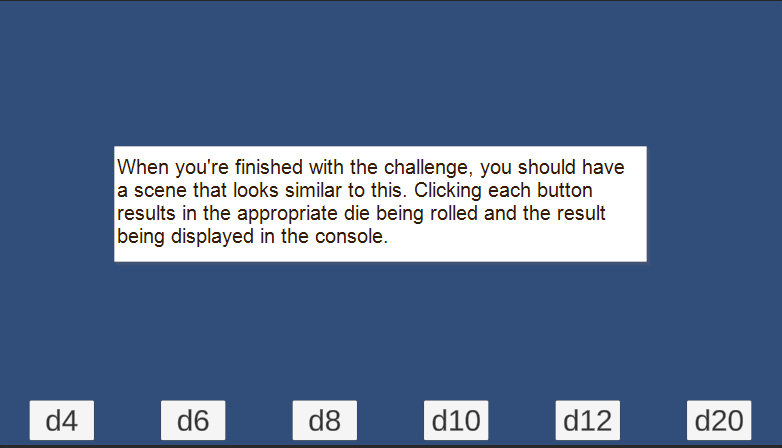

And your scene should look similar to this:

What’s Next?

Once you’ve added in several dice buttons, it’s time to get the information displaying on the screen. To do this, we will learn how to create our own UnityEvents. When you’re ready, proceed to 1.3: Adding an OnRoll Event.
